Besides the classical Arduino Blink project probably the next most popular DIY project is to make your own weather station. On my way to learn the Arduino platform I decided to put together my version. This post is about the result.

Requirements

First I tried to define some requirements. The product should be:

1. Low cost

2. It must have a color display

3. The information on the screen should be refreshed:

4. Manually by a button press

5. Automatically in every 30 minutes

6. The followings have to be displayed:

7. The current atmospheric pressure in milliBars

8. The relative humidity percentage

9. The current temperature in celsius degrees

10. Debug capabilities in test mode:

11. LED based refresh indicator

12. All data should be printed out to the Serial Monitor interface

Parts

Based on the requirements I purchased the following parts:

• Arduino Nano V3 Controller Board - $4,89
• DHT22 Temperature And Humidity Sensor - $6,99
• 1.8 Inch Serial SPI TFT LCD Display Module - $5,89
• BMP180 Digital Barometric Pressure Sensor - $3,77
• Solderless PCB Breadboard 65 Pcs Jumper Cables Wire -  $6,99
• 9V Battery Box Pack Holder With ON/OFF Power Switch - $2,99
• Tactile switch, LED, Resistors, 9V Battery

Thanks to free shipping from Banggood EU Direct I was able to purchase everything from about $35, which is quite impressive!

Wiring

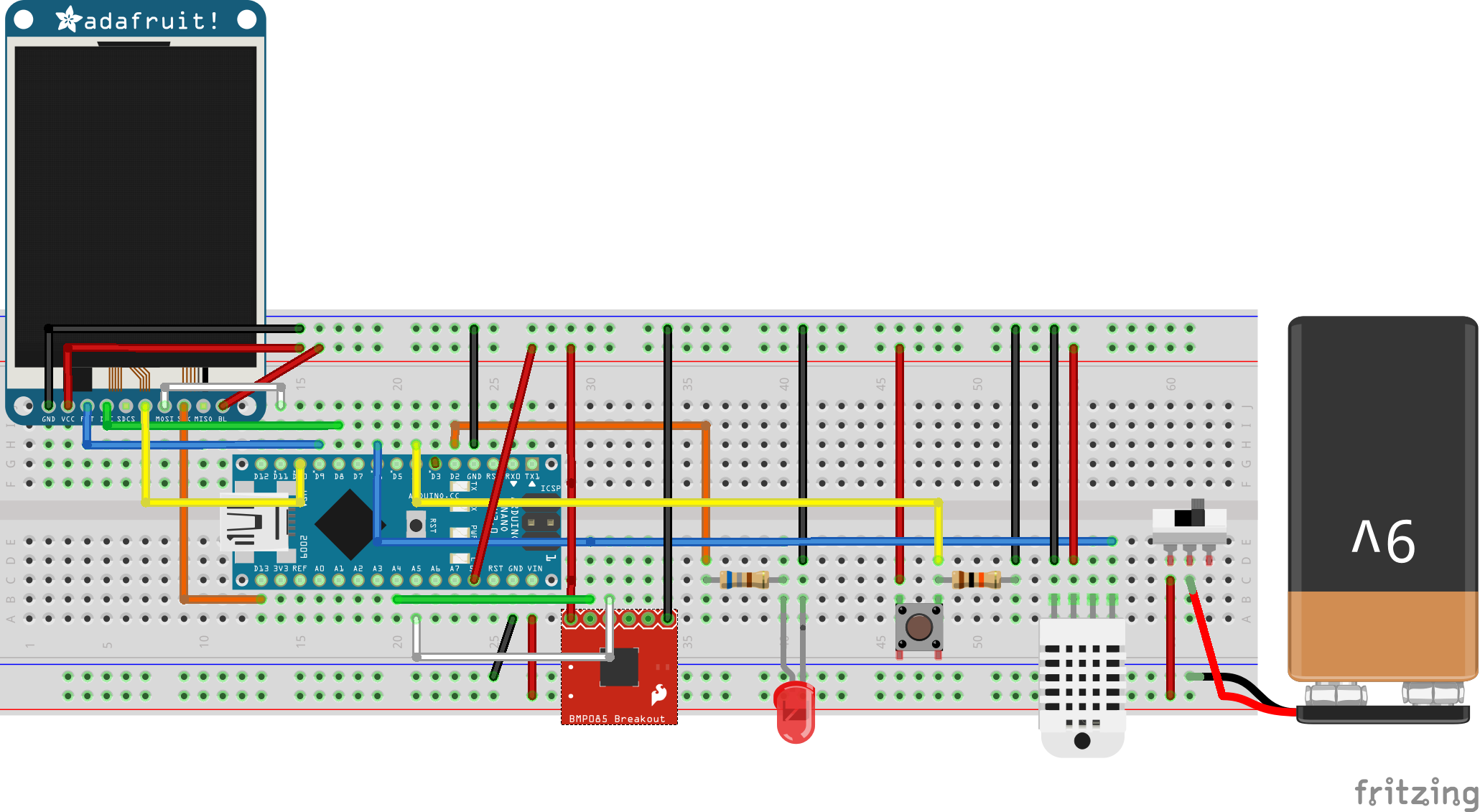

Once I had all the components I wired them together based on the following Fritzing diagram:

Code

The code, which drives the Weather Station is written in the Arduino programming language. It can be found on GitHub here: https://github.com/kornel-schrenk/WeatherStation
