Photoresistor based blink

Contents

1. 1. Photoresistor
2. 2. Prototype
3. 3. Sketch
4. 4. Conclusion

The Hello World! in the Arduino universe is to blink a LED. Often it can be turned on and off with a push putton. Nowadays we use touch gestures instead of physical buttons, which implies the question:

Can the button press be emulated with a touch gesture on Arduino?

Photoresistor

The answer is yes! The physical button can be replaced with a photoresistor, which detects light intensity. The intensity change will emulate the touch - button press - gesture.

The Photoresistor controlling LED blog post is about how one LED can be blinked with a photoresistor.

Can something more advanced be built to demonstrate this idea?

Prototype

The answer is another yes. For instance it would be really cool navigate in menu on a screen with these “buttons”!

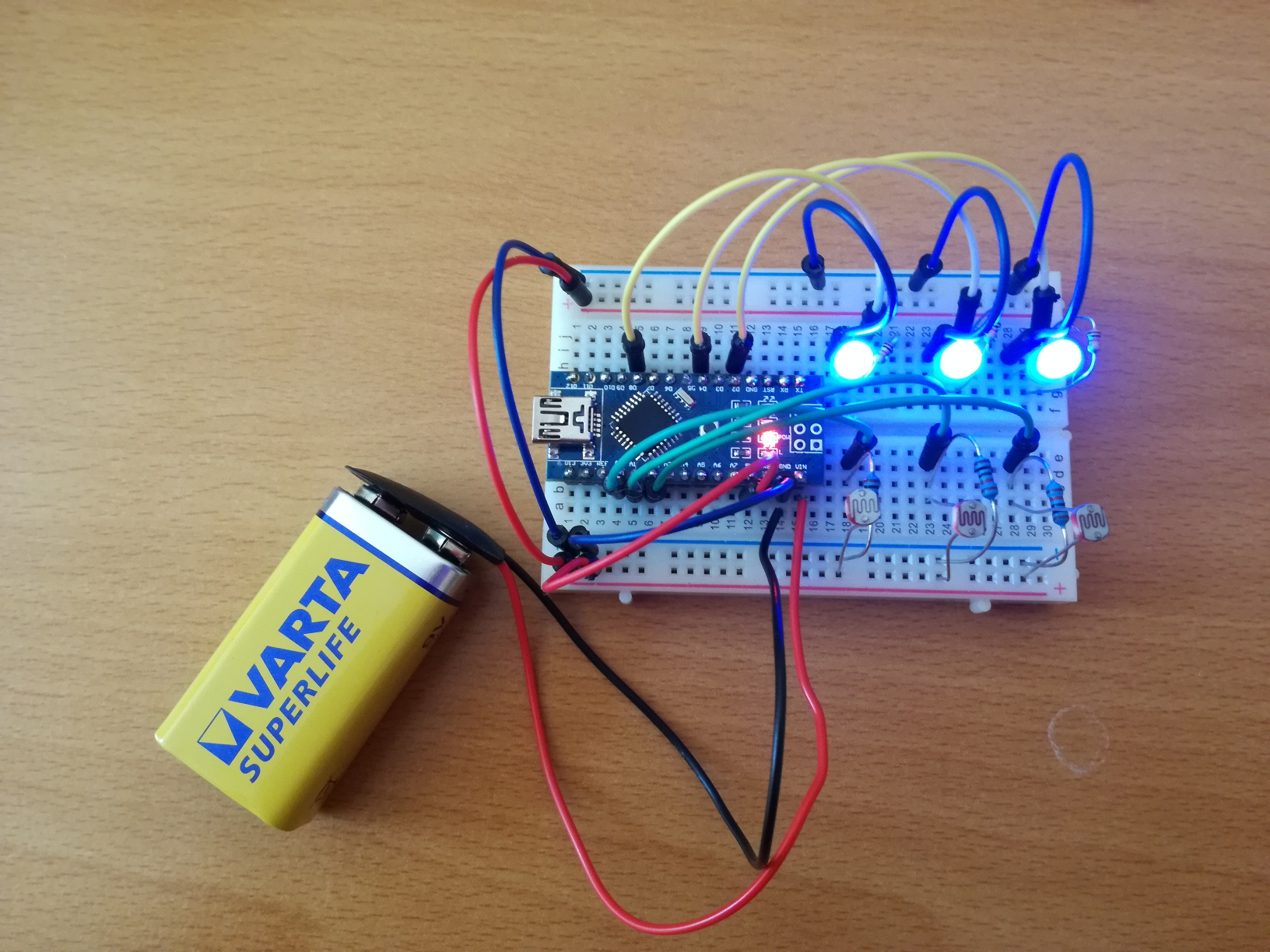

First of all the number of the LEDs and the photoresistors have to be tripled. If you work with an Arduino Nano board the end result might look like this:

In order to display a menu, a TFT LCD screen is required. I used the 1.8” Color TFT LCD display from Adafruit. It has to be wired together with the Arduino Nano board based on this page.

Sketch

Once the wiring is an Arduino sketch is required to make the prototype work. The following one can be used:

#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h>
#include <SPI.h>

#define TFT_CS     10
#define TFT_RST    9
#define TFT_DC     8
#define TFT_SCLK   13
#define TFT_MOSI   11

Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS,  TFT_DC, TFT_RST);

char* mainMenu[] = {" Main Menu",
                " Breadboard     ",
                " Photoresistor  ",
                " Push button    ",
                " Capacitator    ",
                " Microcontroller",
                " Piezo buzzer   "};

#define MENU_SIZE (sizeof(mainMenu)/sizeof(char *))-1
// Postition of first menu item from top of screen
#define MENU_TOP 14

byte selectedMenuItemIndex;
uint16_t currentBackgroundColor = ST7735_BLUE;

void setup(void) {
  pinMode(7, OUTPUT);
  pinMode(4, OUTPUT);
  pinMode(2, OUTPUT);

  Serial.begin(115200);
  Serial.println("Photoresistor Navigation Test");

  tft.initR(INITR_BLACKTAB);
  tft.fillScreen(ST7735_BLACK);
  tft.setTextWrap(false);

  tftMenuInit();

  // Select 1st menu item
  selectedMenuItemIndex = 1;
  tftMenuSelect(selectedMenuItemIndex);
}

void loop() {
  // Divides input 0-1023 to resemble to 0-255
  int photocellInputSelect = (analogRead(0)/4);
  int photocellInputUp = (analogRead(1)/4);
  int photocellInputDown = (analogRead(2)/4);

  analogWrite(7, photocellInputSelect);
  analogWrite(4, photocellInputUp);
  analogWrite(2, photocellInputDown);

  int maxValue = getMaxInputValue(photocellInputSelect, photocellInputUp, photocellInputDown);
  int threshold = 50; //It can be customized!

  if (abs(maxValue-photocellInputSelect) > threshold) {
    selectButtonPressed();
  }
  if (abs(maxValue-photocellInputUp) > threshold) {
    upButtonPressed();
  }
  if (abs(maxValue-photocellInputDown) > threshold) {
    downButtonPressed();
  }

  delay(300);
}

int getMaxInputValue(int photocellInputSelect, int photocellInputUp, int photocellInputDown)
{
  int maxValue = 0;

  if (maxValue < photocellInputSelect) {
    maxValue = photocellInputSelect;
  }
  if (maxValue < photocellInputUp) {
    maxValue = photocellInputUp;
  }
  if (maxValue < photocellInputDown) {
    maxValue = photocellInputDown;
  }

  return maxValue;
}

void selectButtonPressed() {
  Serial.println("Selection button pressed!");

  currentBackgroundColor = ST7735_RED;
  tftMenuSelect(selectedMenuItemIndex);
  currentBackgroundColor = ST7735_BLUE;
}

void upButtonPressed() {
  Serial.println("Up button pressed!");

  if (selectedMenuItemIndex == 1) {
    // Position to the last menu item
    tftMenuSelect(MENU_SIZE);
  } else {
    // Move down the selection
    tftMenuSelect(selectedMenuItemIndex - 1);
  }
}

void downButtonPressed() {
  Serial.println("Down button pressed!");

  if (selectedMenuItemIndex < MENU_SIZE) {
    // Move down the selection
    tftMenuSelect(selectedMenuItemIndex + 1);
  } else {
    // Position to the first menu item
    tftMenuSelect(1);
  }
}

void tftMenuInit() {
  // Clear the screen and set text size
  tft.setTextWrap(false);
  tft.fillScreen(ST7735_BLACK);
  tft.setTextSize(1);

  // Display the header of the menu - the header is the first item
  tft.setCursor(0, 0);
  tft.setTextColor(ST7735_GREEN, ST7735_BLACK);
  tft.println(mainMenu[0]);

  // Draw separation line
  tft.drawLine(0, 9, tft.width()-1, 9, ST7735_GREEN);

  // Display other menu items
  tft.setTextColor(ST7735_YELLOW, ST7735_BLACK);
  for(int i=1; i<=MENU_SIZE; i++)
  {
     tft.setCursor(0, ((i-1)*10)+MENU_TOP);
     tft.println(mainMenu[i]);
  }
}

void tftMenuSelect(byte menuItemIndex) {

  // Remove the highlight from the currently selected menu item
  tft.setCursor(0, ((selectedMenuItemIndex-1)*10)+MENU_TOP);
  tft.setTextColor(ST7735_YELLOW, ST7735_BLACK);
  tft.println(mainMenu[selectedMenuItemIndex]);

  // Highlight the new selected menu item
  tft.setCursor(0, ((menuItemIndex-1)*10)+MENU_TOP);
  tft.setTextColor(ST7735_YELLOW, currentBackgroundColor);
  tft.println(mainMenu[menuItemIndex]);

  // Save the selection
  selectedMenuItemIndex = menuItemIndex;
}

Conclusion

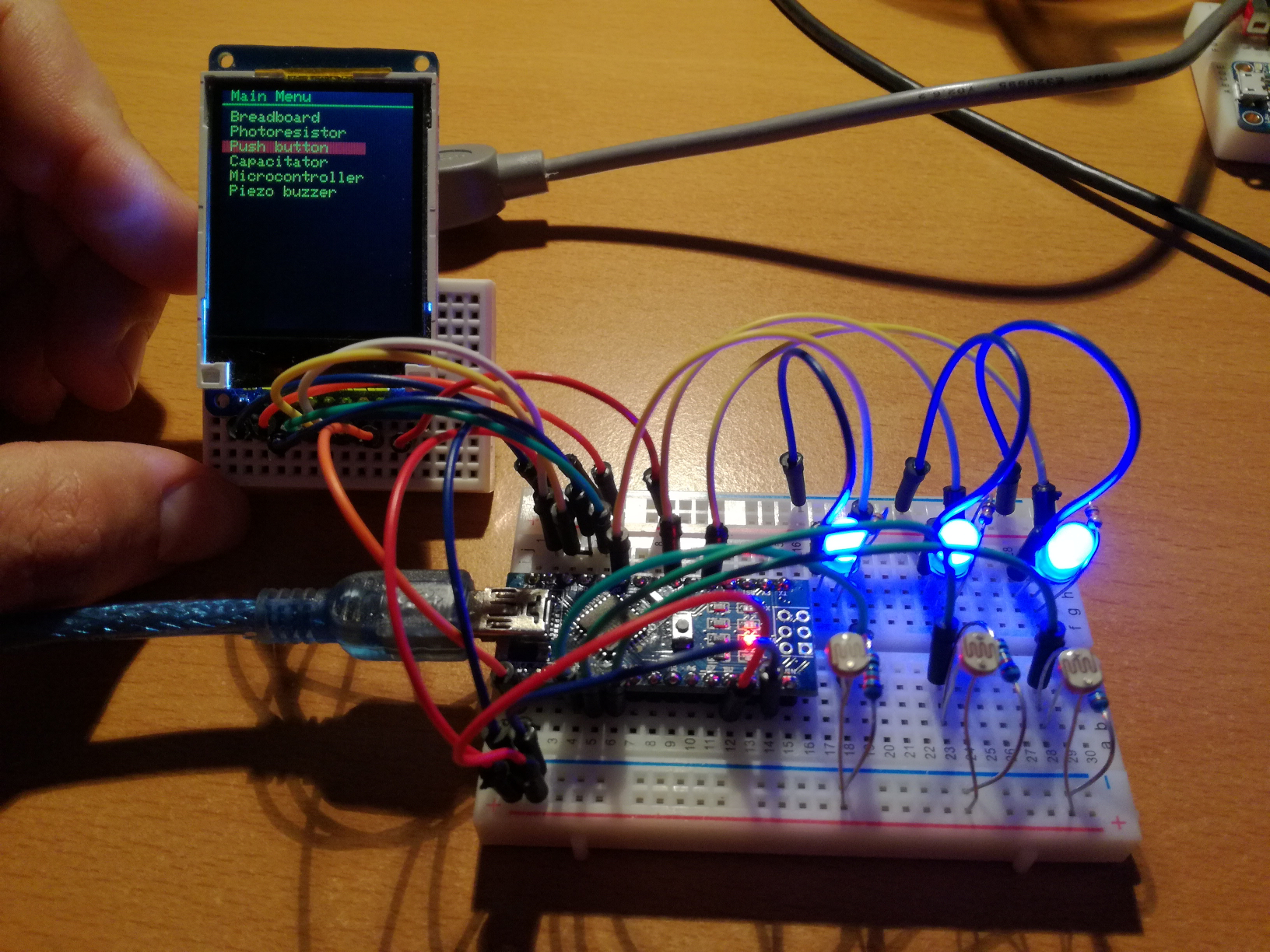

After the sketch upload the prototype will look like this:

The sketch calculates the maximum sensed light value from the three photoresistors. If the difference is above a preset threshold, the right button click will be simulated.

It means the if all of the three values change together no button press will happen.

A small delay also had to be introduced in order to avoid multiple button presses in a small timeframe. This simulates better the behavior of a real life push button.
